Product Description:

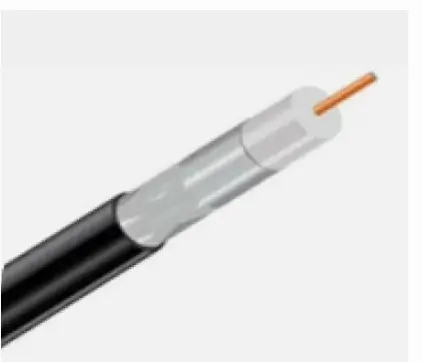

Manufactured by RF Connector House, the TNC HLF 400 LMR Coaxial Cable is an ISO 9001:2008 certified, 50ohm impedance coaxial cable engineered for reliable, low-loss RF signal transmission in home applications. TNC HLF 400 LMR Coaxial Cable built with a solid copper clad aluminium inner conductor, foamed PE dielectric, and a 90% tinned copper-clad aluminium (TCCA) braid outer shield, this cable is protected by a durable black PE jacket, offering consistent performance for demanding installations.
Features:
- Solid copper clad aluminium inner conductor for efficient conductivity
- Foamed PE dielectric for low-loss, high-frequency signal transmission
- 90% TCCA braiding for effective shielding
- Durable black PE jacket for long-term protection
- ISO 9001:2008 certified for assured quality
- 50ohm impedance for standard RF compatibility
Ideal For:
- Home RF signal transmission
- Antenna feed lines
- TNC-terminated communication systems requiring a dependable
- Low-loss coaxial cable solution.
Based on 0 reviews
Be the first to review “TNC HLF 400 LMR Coaxial Cable”
| Application | Home |
| Impedance | 50ohm |
| Upper Material | PVC |
| Inner Material | Aluminium, Copper |
| Shape | Round |
| Part No. | ST01HLF400CU06 |
| Cable Type | Coaxial Cable |
| Inner Conductor | Solid Copper Clad Aluminium - 2.77mm |
| Dielectric | Foamed PE - 7.24mm |
| Inner Shield | Sealed APA Tape - 7.42mm |
| Outer Shield | 34AWG, 90% TCCA - 8.12mm |
| Jacket | Black PE - 10.29mm |
