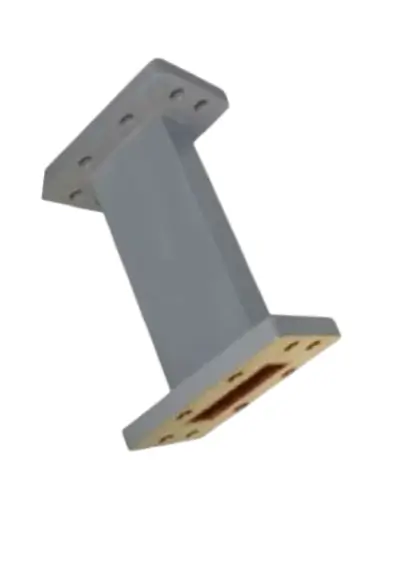

Manufactured by RFCONNECTORHOUSE, this straight waveguide section is a high-performance metal component engineered for efficient, low-loss transmission of high-frequency electromagnetic waves in the X-band range. Featuring a polished finish and rust-proof construction, it offers long life, high performance, and easy operation for demanding industrial RF applications.
Key Features:
• Long life and rust-proof metal construction
• High performance with low insertion loss (≤0.5 dB)
• Polished finish for smooth signal transmission
• Easy to operate and install
• Low VSWR (≤1.25:1) for minimal signal reflection
Ideal For:
- X-Band RF/microwave systems requiring reliable
- low-loss straight-line waveguide transmission in industrial and test/measurement applications.
Based on 0 reviews
Be the first to review “Straight Waveguide Section”
Product Specifications
| Power | High |
| Bandwidth | Wide Band |
| Country of Origin | India |
| Thickness | 15 mm |
| Frequency | 50 Hz |
| Finishing | Polished |
| Usage | Industrial |
| Port | New Delhi |
| Payment Terms | D/A, D/P |
| Delivery Time | 1 Day |
| Packaging Details | As Required by Buyer |
Technical Parameters
| Parameter | Value |
|---|---|
| Frequency | 8.2 – 12.4 GHz (X-Band) |
| Isolation | ≥ 20 dB |
| Insertion Loss | ≤ 0.5 dB |
| VSWR | ≤ 1.25:1 |
| Operating Frequency Band | 12.4–18.0 GHz |
| Attenuation | 0.30 dB/ft / 0.99 dB/m |
| Average Power | 400 W |
| Peak Power | 100.0 kW |
| Component | Flexible Twist Waveguide |
| Size | WR62 |
| Interface | WG18 / R140 / PDR140 / UBR140 |
| Maximum Twist | 445.00°/m / 135.00°/ft |
| Minimum Bend Radius (E) | 52.00 mm / 2.00 in |
| Minimum Bend Radius (H) | 102.00 mm / 4.00 in |
| Maximum Pressurization | 45 psi / 310 kPa |
